Here are the key points about the Trimble R10 Keypad Usage and assembly (P/N 79997-20S) in English:

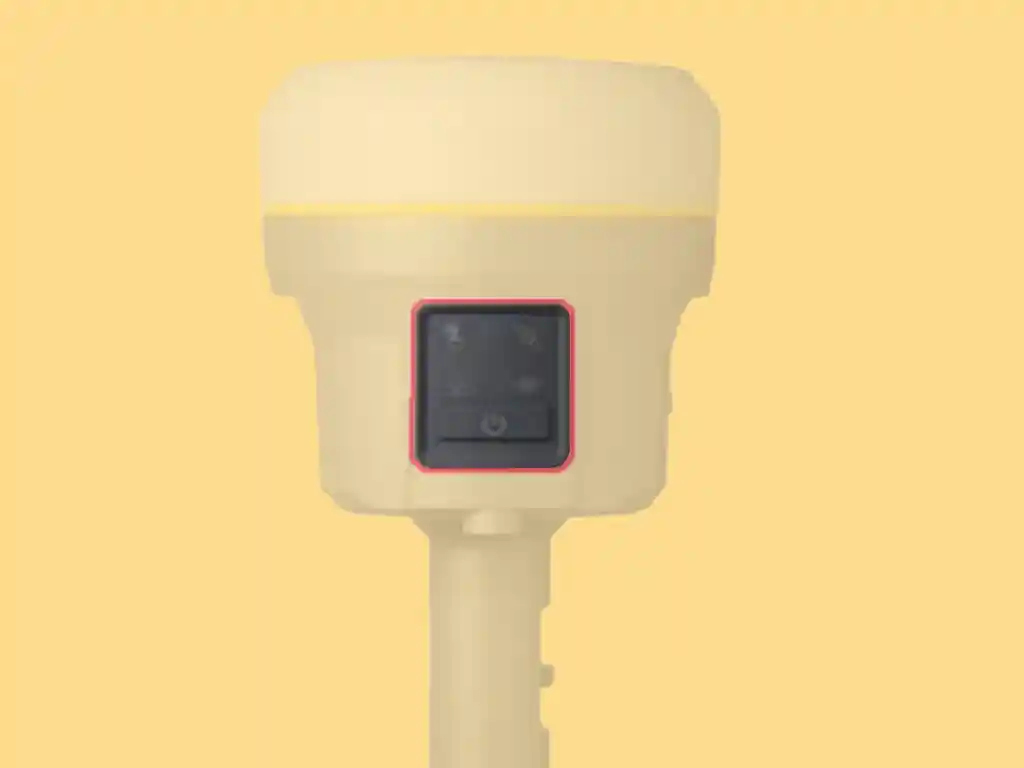

- The keypad assembly mounts to the lower housing with no nuts. It has:
- One button to turn the receiver on and off, and to perform a soft or hard reset.
- Five LEDs to show the status of:
- Satellite tracking
- Radio reception
- Data logging
- Wi-Fi
- Power input
- The flex cable connects the keypad to the radio interface board and runs into the hotbox.
| Receiver mode | Power | Radio LED | Satellite | Data LED | Wi-Fi LED |
|---|---|---|---|---|---|
| Receiver OFF | OFF | OFF | OFF | OFF | OFF |
| Receiver | ON | ON | N/A | N/A | N/A |
| Low pow | Fast flash | N/A | N/A | N/A | N/A |
| Transmit | N/A | Flashes off when transmitting | N/A | N/A | N/A |
| Receivin (N: 963, 540 RGB: #000000) | ON | Slow flash | N/A | N/A | N/A |
| Tracking <4 SVS | ON | N/A | Fast flash | N/A | N/A |
| Tracking >4 SVs | ON | N/A | Slow flash | N/A | N/A |
| Logging data intemally | N/A | N/A | N/A | ON | N/A |
| Transferring data to flash memory stick | N/A | N/A | N/A | Slow flash | N/A |
| All data transferred to flash memory stick | N/A | N/A | N/A | Very slow flash | N/A |
| Flash memory stick full | N/A | N/A | N/A | Fast flash | N/A |
| Wi-Fi configured as an access point | N/A | N/A | N/A | N/A | Slow flash |
| Wi-Fi configured as a client | N/A | N/A | N/A | N/A | ON |
| Receiver in monitor mode (loading firmware from WinFIash) | ON | Slow flash | ON | OFF | OFF |
